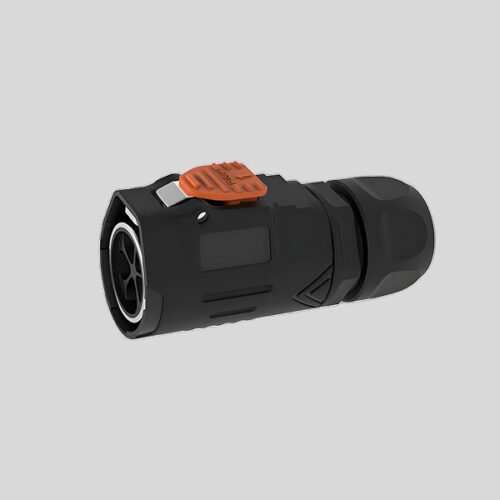

ip67 waterproof connectors male power electrical wire for medical equipment
Varenummer: YW62-200513-01 Farve: Sort
5 pin ip67 waterproof connectors, male, quick lock, made in China
| Del NO | YW62-200513-01 | Gennemløbstid | 3-4 uger |
| Nominel strøm | 30A | Nominel spænding | 300V |
| Position | 5 ben | Bestillingsmængde | Lille ordre tilgængelig |
| Driftstemperatur | -40 til +105 ℃ | Connecting mode | Quick lock |
ip67 waterproof connectors male power electrical wire for medical equipment
YW is a professional circular connector manufacturer in China, your reliable electrical Connector supplier.
There are over 30,000 kinds of electrical connectors in our factory for Industrial automation, marine, boat, Control systems and PLCs, Robotic machinery, medical equipment, data centers, telecommunication, Military and Aerospace, Power and Energy storage application.
Små ordrer accepteres.
Basic data for MY24 5 pin ip67 waterproof connectors
| MY24 Pole Male connector | ||||
| PART NO | YW62-200213-01 | YW62-200313-01 | YW62-200413-01 | YW62-200513-01 |
| Number of contacts | 2 pin | 3 ben | 4 ben | 5 ben |
| Rated Currant | 50A | 30A | ||
| Nominel spænding | 300V | 300V | 300V | 300V |
| Withstand Voltage | 2000V | 1500V | ||
| Cable range | 16-9AWG (1.5mm²-6mm²） | 18-12AWG (1.0mm²-4mm²） | ||
| Contact diameter | Φ3.6 | Φ2.7 | ||
| Diameter range | MAX Φ16.0mm | |||
| Driftstemperatur | -40℃ to 105℃ | |||
| Connecting mode | Quick lock | |||
| Insulation Material | High-performance engineering plastics | |||
| Terminal Material | Copper Alloy | |||
| Flame-resistant rating | UL94V-0 | |||
| Waterproof Level | IP67 | |||
Application of MY24 series ip67 waterproof connectors
Marine Energy system Medical Equipment
Railway Telecommunications Boat Aerospace & Military
Industrial Automation: control systems, robots, sensors and automation devices
Du er velkommen til at kontakte os og udfylde nedenstående tabel, så får du vores svar inden for 30 minutter.
| Forbindelsessystem | Ledning til ledning |
|---|
