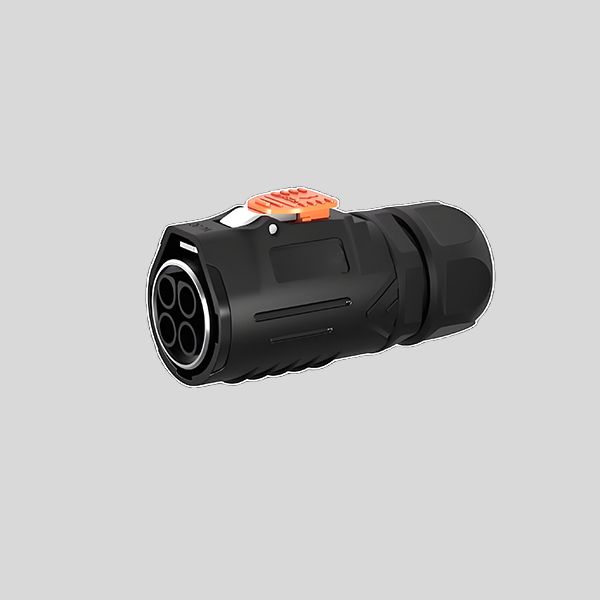

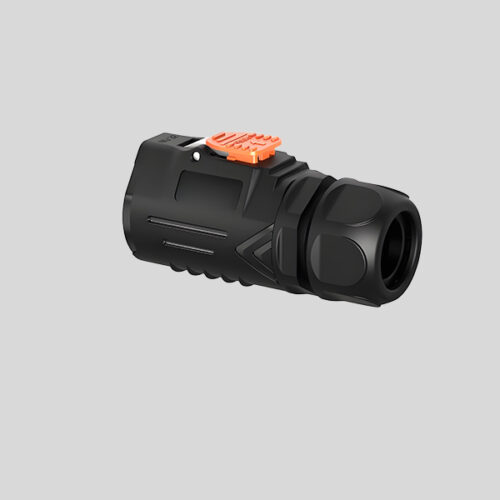

4 pin aviation connector pinout plug MY32 waterproof Electric Wire Cable supplier in China
Teil Nummer: YW64-200413-01 Farbe: Schwarz
4 pin aviation connector pinout, IP67 waterproof, plug
| Teil NO | YW64-200413-01 | Vorlaufzeit | 3-4 Wochen |
| Nennstrom | 80A | Nennspannung | 600V |
| Position | 3 Stift | Menge bestellen | Kleiner Auftrag verfügbar |
| Betriebstemperatur | -40 bis +105℃ | Connecting mode | Quick lock |
4 pin aviation connector pinout plug MY32 waterproof Electric Wire Cable supplier in China
YW is a leading circular connector manufacturer in China, your reliable and experienced electrical Steckers Lieferanten.
Various circular connectors for Industrial automation, marine, Control systems and PLCs, Robotic machinery, medical equipment, data centers, telecommunication, Military and Aerospace application, Power and Energy.
Kleine Bestellungen werden angenommen.
Basic data for MY32 4 pin aviation connector pinout
MY32 series 2 to 5 Pin male Connector | ||||
| ARTIKELNR. | YW64-200213-01 | YW64-200313-01 | YW64-200413-01 | YW64-200513-01 |
| Number of contacts | 2 pin | 3 Stift | 4 Stift | 5 Stift |
| Rated Currant | 120A | 80A | 80A | 50A |
| Nennspannung | 600V | 600V | 600V | 300V |
| Waterproof Level | IP67 | |||
| Cable range | 10-3AWG (4mm²-25mm²） | 10-5AWG (4mm²-16mm²） | 18-9AWG (1.0mm²-6mm²） | |
| Contact diameter | Φ6.0 | Φ4.0 | Φ3.6 | |
| Diameter range | MAX Φ25.0mm | |||
| Betriebstemperatur | -40℃ to 105℃ | |||
| Connecting mode | Quick lock | |||
| Insulation Material | High-performance engineering plastics | |||
| Terminal Material | Copper Alloy | |||
| Flame-resistant rating | UL94V-0 | |||
| Withstand Voltage | 3000V | 2000V | ||
Application of MY32 series
Marine Aerospace Military Medical Equipment
Energy system Railway Telecommunications
Industrial Automation: control systems, robots, sensors and automation devices
