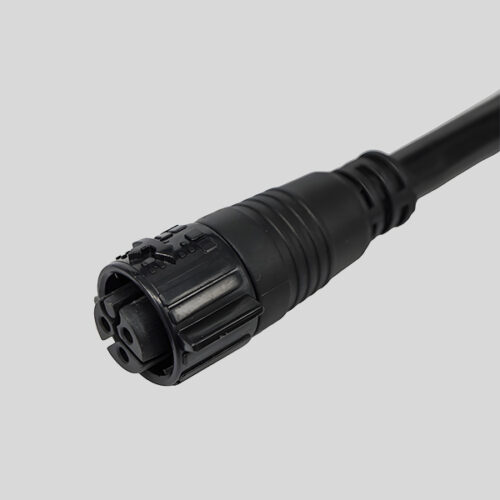

M19 Waterproof Power Cable Connectors 300V Voltage Rated 3Pin Female

FarbeSchwarzVorlaufzeit2-3 Wochen
Nennstrom20ANennspannung300V
Position3 StiftMenge bestellenKleiner Auftrag verfügbar
Betriebstemperatur-40 bis +105℃Modus "Verbindenpush locking /quick lock cable Connectors

Basic data for M19 Waterproof Power Cable Connectors

TypAdapterGenderBuchse, Buchse
ShapeRoundOperating temperat-40℃~105℃
Kontakt MaterialKupfer-LegierungIP levelip67
Housing MaterialnylonConnector typePush locking with cable
Nennstrom20A for 2/3pinNennspannung300V for 2/3pin
15A for 4pin300V for 3/4pin
15A+5A for 5/6/7/8pin300V+ 60V for 5/6/7/8pin
5A for 9/10/12/14/16/18pin60V for 9/10/12/14/16/18pin
15A+5A for 22pin300V+ 60V for 22pin
Pin2/3/4/5/6/7/8/9/10/12/14/16/18pinFeaturesVarious pin available, quick lock

M19 Series connectors are IP67 waterproof connectors, quick lock and easy assembly.

Applications of M19 Cable Connectors

    • LED lighting systems

    • Outdoor security cameras

    • Industrial automation equipment

    • Electric bicycles and scooters

    • Solar power systems

    • Marine electronics

    • Outdoor communication devices

Key Features of M19 Series Connectors

  1. Fortgeschrittenes Design: Secure self-locking mechanism for reliable connections

  2. Multiple Pin Options: Available in 2 to 22 pins, including 2, 3, 4, 5, 6, 7, 8, 9,10,12,14,16,18,22-pin configurations

  3. Flexible Contact Terminals: Supports both screw and soldering terminals

  4. Versatile Assembly Types:

    • Wire-to-wire (Without cable)

    • Wire-to-wire with overmolding (With cable)

    • Wire-to-board connections

  5. Color Options: Available in black, blue, white, and yellow

  6. Custom Cable Lengths: Cable lengths can be customized to customer’s requirements
