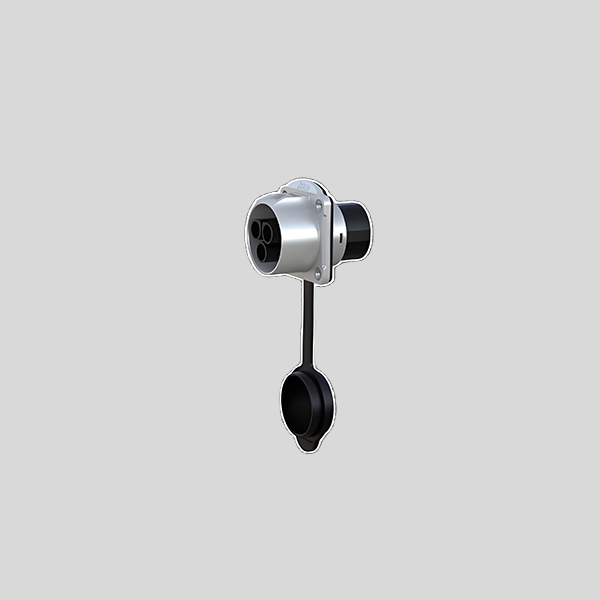

MY32 3 pin waterproof wire connection female metal circular connector factory in China
Teil Nummer: YW64-200353-01 Color: Black and metal
3 pin Metal Circular Connector, IP67 waterproof, female, easy and quick connect, made in China
| Teil NO | YW64-200353-01 | Vorlaufzeit | 3-4 Wochen |
| Nennstrom | 80A | Nennspannung | 600V |
| Position3 | 3 Stift | Menge bestellen | Kleiner Auftrag verfügbar |
| Betriebstemperatur | -40 bis +105℃ | Connecting mode | Quick lock |
MY32 3 pin waterproof wire connection female metal circular connector factory in China
YW is a professional circular connector manufacturer in China, your reliable and experienced Aviation electrical Connector
supplier.
Various circular connectors for Industrial automation, marine, Control systems and PLCs, Robotic machinery, medical equipment, data centers, telecommunication, Military and Aerospace application, Power and Energy.
Kleine Bestellungen werden angenommen.
Basic data for MY32 3 pin Metal Circular Connector
| MY32 Pole socket connector | ||||
| ARTIKELNR. | YW64-200253-01 | YW64-200353-01 | YW64-200453-01 | YW64-200553-01 |
| Number of contacts | 2 pin | 3 Stift | 4 Stift | 5 Stift |
| Rated Currant | 120A | 80A | 80A | 50A |
| Nennspannung | 600V | 600V | 600V | 300V |
| Waterproof Level | IP67 | |||
| Cable range | 10-3AWG (4mm²-25mm²） | 10-5AWG (4mm²-16mm²） | 18-9AWG (1.0mm²-6mm²） | |
| Contact diameter | Φ6.0 | Φ4.0 | Φ3.6 | |
| Diameter range | MAX Φ25.0mm | |||
| Betriebstemperatur | -40℃ to 105℃ | |||
| Connecting mode | Quick lock | |||
| Insulation Material | High-performance engineering plastics | |||
| Terminal Material | Copper Alloy | |||
| Flame-resistant rating | UL94V-0 | |||
| Withstand Voltage | 3000V | 2000V | ||
Application of MY32 series
Marine Aerospace Military Medical Equipment
Energy system Railway Telecommunications Boat
Industrial Automation: control systems, robots, sensors and automation devices
