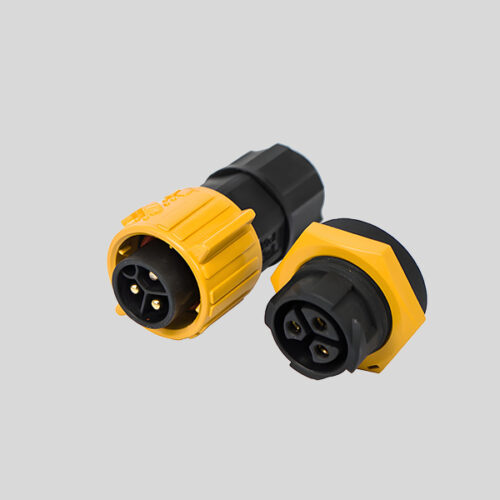

M19 3 Pin outdoor lighting connectors Male and Female Industrial Waterproof for led display screen
| Farbe | Black,yellow,white,blue are available | Vorlaufzeit | 2-3 Wochen |
| Nennstrom | 20A | Nennspannung | 300V |
| Position | 3 Stift | Menge bestellen | Kleiner Auftrag verfügbar |
| Betriebstemperatur | -40 bis +105℃ | Modus "Verbinden | push locking /quick lock |
Basic data for M19 outdoor lighting connectors
| Typ | Adapter | Gender | pole socket, female |
| Shape | Round | Operating temperat | -40℃~105℃ |
| Kontakt Material | Kupfer-Legierung | IP level | ip67 |
| Housing Material | nylon | Connector type | Push locking with cable |
| Nennstrom | 20A for 2/3pin | Nennspannung | 300V for 2/3pin |
| 15A for 4pin | 300V for 3/4pin | ||
| 15A+5A for 5/6/7/8pin | 300V+ 60V for 5/6/7/8pin | ||
| 5A for 9/10/12/14/16/18pin | 60V for 9/10/12/14/16/18pin | ||
| 15A+5A for 22pin | 300V+ 60V for 22pin | ||
| Pin | 2/3/4/5/6/7/8/9/10/12/14/16/18pin | Features | Various pin available, quick lock |
M19 Series low voltage outdoor lighting connectors are IP67 waterproof connectors, quick lock and easy assembly.
Applications of M19 Series waterproof IP67 Connector
LED lighting systems
Outdoor security cameras
Industrial automation equipment
Electric bicycles and scooters
Solar power systems
Marine electronics
Outdoor communication devices
Key Features of M19 Series outdoor lighting connectors
Fortgeschrittenes Design: Secure self-locking mechanism for reliable connections
Multiple Pin Options: Available in 2 to 22 pins, including 2, 3, 4, 5, 6, 7, 8, 9,10,12,14,16,18,22-pin configurations
Flexible Contact Terminals: Supports both screw and soldering terminals
Versatile Assembly Types:
Wire-to-wire (Without cable)
Wire-to-wire with overmolding (With cable)
Wire-to-board connections
Color Options: Available in black, blue, white, and yellow
Custom Cable Lengths: Cable lengths can be customized to customer’s requirements
Bitte kontaktieren Sie uns und füllen Sie die untenstehende Tabelle aus. Sie erhalten innerhalb von 30 Minuten eine Antwort von uns.
| Steckersystem | Draht zu Draht |
|---|
