2 pin Aviation Connector wire connectors electrical MY32 oem manufacturer for robotics and automation
Teil Nummer: YW64-200253-01 Farbe: Schwarz
2 pin Aviation Connector, IP67 waterproof, female, easy and quick connect, made in China
| Teil NO | YW64-200253-01 | Vorlaufzeit | 3-4 Wochen |
| Nennstrom | 120A | Nennspannung | 600V |
| Position3 | 2 pin | Menge bestellen | Kleiner Auftrag verfügbar |
| Betriebstemperatur | -40 bis +105℃ | Connecting mode | Quick lock |
2 pin Aviation Connector wire connectors electrical MY32 oem manufacturer for robotics and automation
YW is a professional circular connector manufacturer in China, your reliable and experienced Aviation electrical Connector
supplier.
Various circular connectors for Industrial automation, marine, Control systems and PLCs, Robotic machinery, medical equipment, data centers, telecommunication, Military and Aerospace application, Power and Energy.
Kleine Bestellungen werden angenommen.

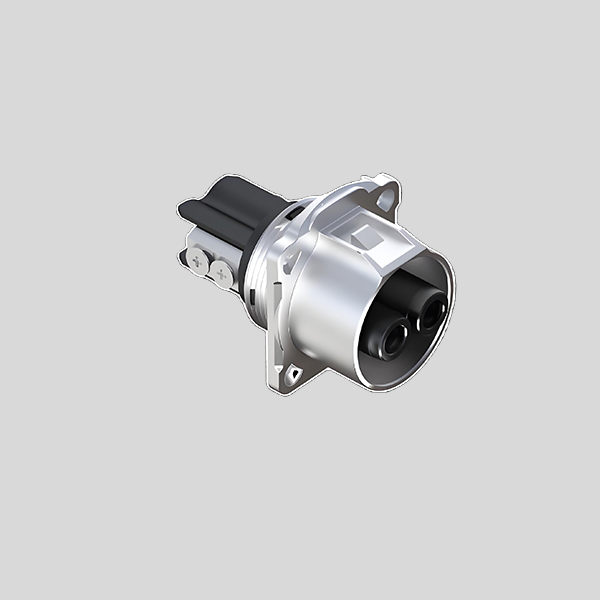

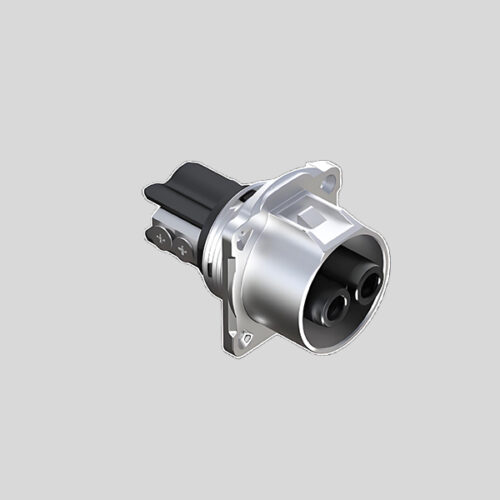

Basic data for MY32 2 pin Aviation Connector
| MY32 Pole socket connector | ||||
| ARTIKELNR. | YW64-200253-01 | YW64-200353-01 | YW64-200453-01 | YW64-200553-01 |
| Number of contacts | 2 pin | 3 Stift | 4 Stift | 5 Stift |
| Rated Currant | 120A | 80A | 80A | 50A |
| Nennspannung | 600V | 600V | 600V | 300V |
| Waterproof Level | IP67 | |||
| Cable range | 10-3AWG (4mm²-25mm²） | 10-5AWG (4mm²-16mm²） | 18-9AWG (1.0mm²-6mm²） | |
| Contact diameter | Φ6.0 | Φ4.0 | Φ3.6 | |
| Diameter range | MAX Φ25.0mm | |||
| Betriebstemperatur | -40℃ to 105℃ | |||
| Connecting mode | Quick lock | |||
| Insulation Material | High-performance engineering plastics | |||
| Terminal Material | Copper Alloy | |||
| Flame-resistant rating | UL94V-0 | |||
| Withstand Voltage | 3000V | 2000V | ||
Application of MY32 series
Marine Aerospace Military Medical Equipment
Energy system Railway Telecommunications
Industrial Automation: control systems, robots, sensors and automation devices
Bitte kontaktieren Sie uns und füllen Sie die untenstehende Tabelle aus. Sie erhalten innerhalb von 30 Minuten eine Antwort von uns.
| Steckersystem | Draht zu Draht |
|---|
