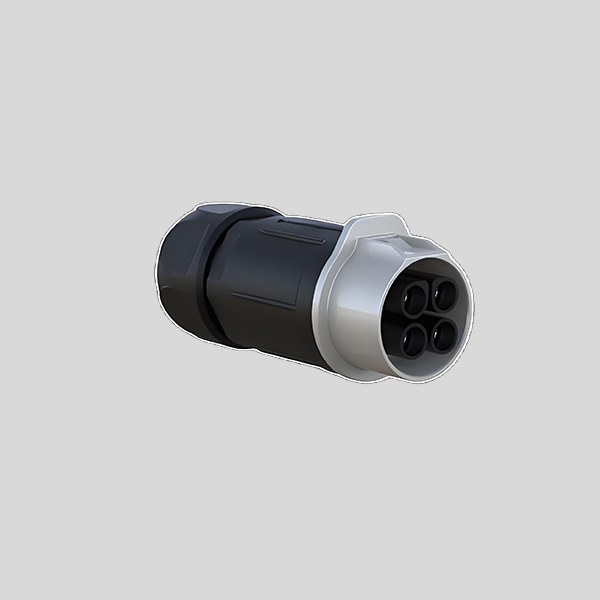

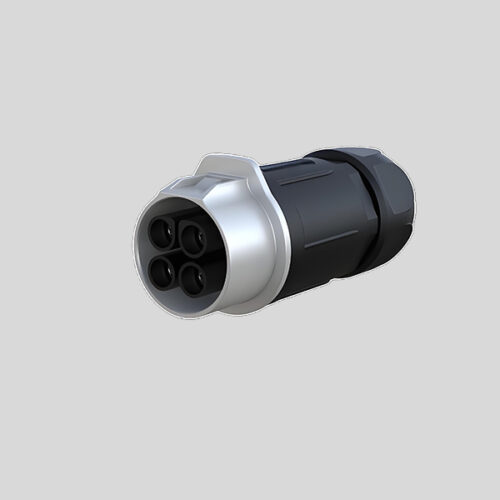

Easy assembly 4 pin power connector MY32 OEM china factory for energy storage system
Teil Nummer: YW64-200433-01 Farbe: Schwarz
4 pin power connector, IP67 waterproof, female, quick connect, made in China
| Teil NO | YW64-200433-01 | Vorlaufzeit | 3-4 Wochen |
| Nennstrom | 80A | Nennspannung | 600V |
| Position3 | 4 Stift | Menge bestellen | Kleiner Auftrag verfügbar |
| Betriebstemperatur | -40 bis +105℃ | Connecting mode | Quick lock |
Easy assembly 4 pin power connector MY32 OEM china factory for energy storage system
YW is a professional circular connector manufacturer in China, your reliable and experienced Aviation electrical Connector
supplier.
Various circular connectors for Industrial automation, marine, Control systems and PLCs, Robotic machinery, medical equipment, data centers, telecommunication, Military and Aerospace application, Power and Energy.
Kleine Bestellungen werden angenommen.
Basic data for MY32 4 pin power connector
| MY32 Pole female Connector | ||||
| ARTIKELNR. | YW64-200233-01 | YW64-200333-01 | YW64-200433-01 | YW64-200533-01 |
| Number of contacts | 2 pin | 3 Stift | 4 Stift | 5 Stift |
| Rated Currant | 120A | 80A | 80A | 50A |
| Nennspannung | 600V | 600V | 600V | 300V |
| Waterproof Level | IP67 | |||
| Cable range | 10-3AWG (4mm²-25mm²） | 10-5AWG (4mm²-16mm²） | 18-9AWG (1.0mm²-6mm²） | |
| Contact diameter | Φ6.0 | Φ4.0 | Φ3.6 | |
| Diameter range | MAX Φ25.0mm | |||
| Betriebstemperatur | -40℃ to 105℃ | |||
| Connecting mode | Quick lock | |||
| Insulation Material | High-performance engineering plastics | |||
| Terminal Material | Copper Alloy | |||
| Flame-resistant rating | UL94V-0 | |||
| Withstand Voltage | 3000V | 2000V | ||
Application of MY32 series
Marine Aerospace Military Medical Equipment
Energy system Railway Telecommunications
Industrial Automation: control systems, robots, sensors and automation devices
