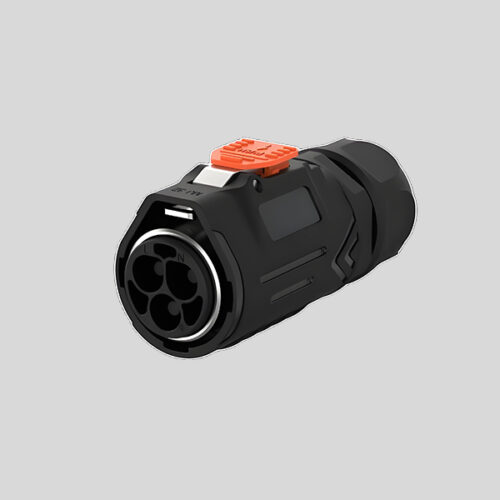

MY32 3 pin custom connector manufacturer power plug for railway transportation
Teil Nummer: YW64-100313-01 Farbe: Schwarz
3 Stift circular connectors, IP67 waterproof, plug, custom connector manufacturer
| Teil NO | YW64-100313-01 | Vorlaufzeit | 3-4 Wochen |
| Nennstrom | 120A | Nennspannung | 600V |
| Position | 3 Stift | Menge bestellen | Kleiner Auftrag verfügbar |
| Betriebstemperatur | -40 bis +105℃ | Connecting mode | Quick lock |
MY32 3 pin custom connector manufacturer power plug for railway transportation
YW is a leading connector factory in China, your reliable and experienced circular Steckers Lieferanten.
Various circular connectors for Industrial automation, marine, Control systems and PLCs, Robotic machinery, medical equipment, data centers, telecommunication, Military and Aerospace application, Power and Energy.
Kleine Bestellungen werden angenommen.
Basic data (MY32 custom connector manufacturer circular connectors)
MY32 series 2 to 5 Pin male Connector | ||||
| ARTIKELNR. | YW64-100213-01 | YW64-100313-01 | YW64-100413-01 | YW64-100513-01 |
| Number of contacts | 2 pin | 3 Stift | 4 Stift | 5 Stift |
| Rated Currant | 120A | 80A | 80A | 50A |
| Nennspannung | 600V | 600V | 600V | 300V |
| Waterproof Level | IP67 | |||
| Cable range | 10-3AWG (4mm²-25mm²） | 10-5AWG (4mm²-16mm²） | 18-9AWG (1.0mm²-6mm²） | |
| Contact diameter | Φ6.0 | Φ4.0 | Φ3.6 | |
| Diameter range | MAX Φ25.0mm | |||
| Betriebstemperatur | -40℃ to 105℃ | |||
| Connecting mode | Quick lock | |||
| Insulation Material | High-performance engineering plastics | |||
| Terminal Material | Copper Alloy | |||
| Flame-resistant rating | UL94V-0 | |||
| Withstand Voltage | 3000V | 2000V | ||
Application of MY32 series waterproof circular connectors
Marine Aerospace Military Medical Equipment
Energy system Railway Telecommunications
Industrial Automation: control systems, robots, sensors and automation devices
Bitte kontaktieren Sie uns und füllen Sie die untenstehende Tabelle aus. Sie erhalten innerhalb von 30 Minuten eine Antwort von uns.
| Steckersystem | Draht zu Draht |
|---|
