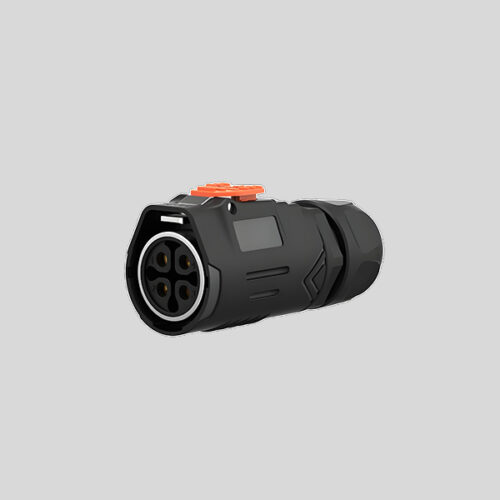

high current pcb connectors 4 way waterproof electrical plug for Railway

Numéro de pièce : YW62-200413-01 Couleur : Noir

4 pin high current pcb connectors, IP67, male, quick lock, made in China

Partie NO	YW62-200413-01	Délai d'exécution	3-4 semaines
Courant nominal	30A	Tension nominale	300V
Position	4 broches	Quantité commandée	Petites commandes disponibles
Température de fonctionnement	-40 à +105℃	Connecting mode	Quick lock

high current pcb connectors 4 way waterproof electrical plug for Railway

YW is a professional circular connector manufacturer in China, your reliable electrical Connector supplier.

There are over 30,000 kinds of electrical connectors in our factory for Industrial automation, marine, boat, Control systems and PLCs, Robotic machinery, medical equipment, data centers, telecommunication, Military and Aerospace, Power and Energy storage application.

Les petites commandes sont acceptées.

Basic data for MY24 4 pin high current pcb connectors

MY24 Pole Male connector
PART NO	YW62-200213-01	YW62-200313-01	YW62-200413-01	YW62-200513-01
Number of contacts	2 pin	3 broches	4 broches	5 broches
Rated Currant	50A		30A
Tension nominale	300V	300V	300V	300V
Withstand Voltage	2000V		1500V
Cable range	16-9AWG (1.5mm²-6mm²）		18-12AWG (1.0mm²-4mm²）
Contact diameter	Φ3.6		Φ2.7
Diameter range	MAX Φ16.0mm
Température de fonctionnement	-40℃ to 105℃
Connecting mode	Quick lock
Insulation Material	High-performance engineering plastics
Terminal Material	Copper Alloy
Flame-resistant rating	UL94V-0
Waterproof Level	IP67
