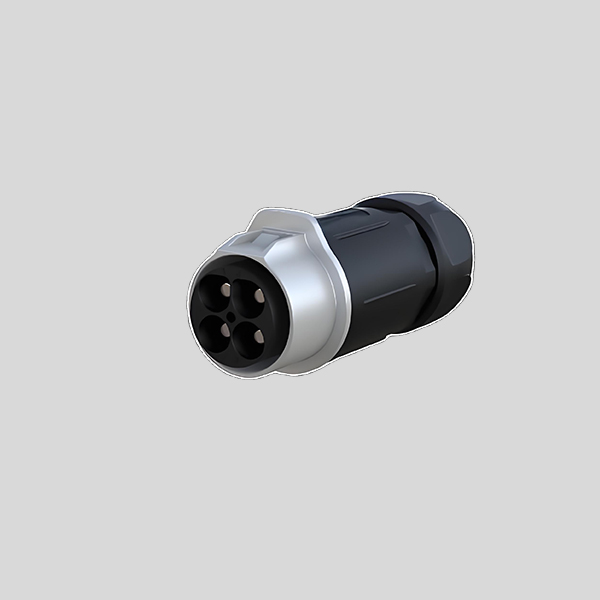

wire to wire connectors circular 4 pin waterproof MY32 female socket for Railway systems
Numero di parte: YW64-100453-01 Color: Black and metal
4 Pin wire to wire connectors, IP67 waterproof, female, easy and quick connect, made in China
| Parte NO | YW64-100453-01 | Tempi di consegna | 3-4 settimane |
| Corrente nominale | 80A | Tensione nominale | 600V |
| Position3 | 4 pin | Quantità d'ordine | Piccolo ordine disponibile |
| Temperatura di esercizio | Da -40 a +105℃ | Connecting mode | Quick lock |
wire to wire connectors circular 4 pin waterproof MY32 female socket for Railway systems
YW is a professional circular connector manufacturer in China, your reliable Aviation electrical Connector supplier.
Various circular connectors for Industrial automation, marine, boat, Control systems and PLCs, Robotic machinery, medical equipment, data centers, telecommunication, Military and Aerospace application, Power and Energy.
Si accettano piccoli ordini.
Basic data for MY32 2 Pin Connector Waterproof
| MY32 Pin socket connector | ||||
| PARTE N. | YW64-100253-01 | YW64-100353-01 | YW64-100453-01 | YW64-100553-01 |
| Number of contacts | 2 pin | 3 pin | 4 pin | 5 pin |
| Rated Currant | 120A | 80A | 80A | 50A |
| Tensione nominale | 600V | 600V | 600V | 300V |
| Waterproof Level | IP67 | |||
| Cable range | 10-3AWG (4mm²-25mm²） | 10-5AWG (4mm²-16mm²） | 18-9AWG (1.0mm²-6mm²） | |
| Contact diameter | Φ6.0 | Φ4.0 | Φ3.6 | |
| Diameter range | MAX Φ25.0mm | |||
| Temperatura di esercizio | -40℃ to 105℃ | |||
| Connecting mode | Quick lock | |||
| Insulation Material | High-performance engineering plastics | |||
| Terminal Material | Copper Alloy | |||
| Flame-resistant rating | UL94V-0 | |||
| Withstand Voltage | 3000V | 2000V | ||
Application of MY32 series
Marine Aerospace Military Medical Equipment
Energy system Railway Telecommunications Boat
Industrial Automation: control systems, robots, sensors and automation devices
Non esitate a contattarci e a compilare la tabella sottostante, riceverete la nostra risposta entro 30 minuti.
| Sistema di connettori | Da filo a filo |
|---|
