Conectores de fio para placa
YW offers a wide variety of wire to board connectors that meet applications for customers and withstand reliable deliver data.
3.0mm Micro Match
3.0mm micromatch series wire to board are widely used in many applications.
| Passo | Cor | Circuitos | Corrente (máx.) | Tensão (MAX) | Packing |
|---|---|---|---|---|---|
| 3,0 mm | Preto | 2 a 24 | 5A | 250V | PE bag |

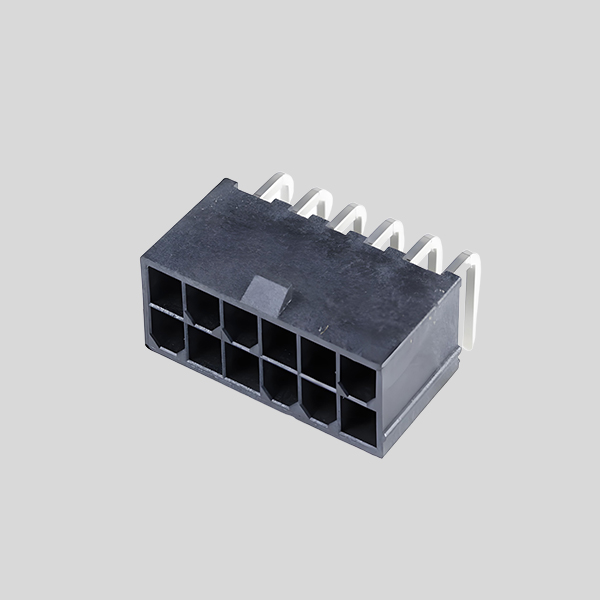

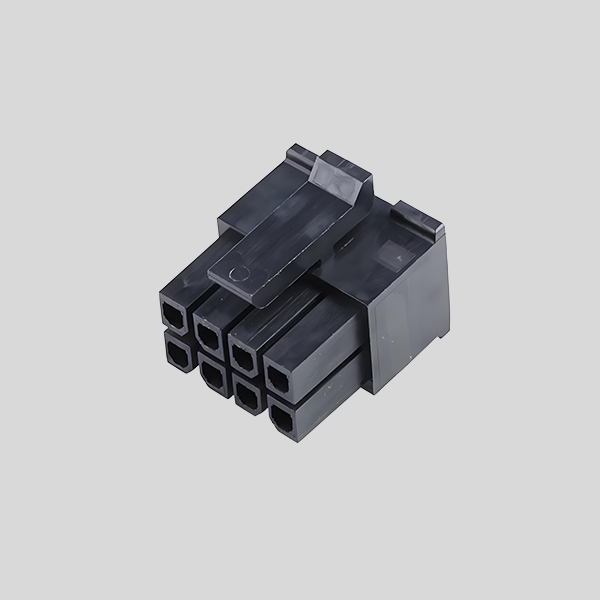

4.2mm Mini Fit
4.2mm minit fit wire to board connector
| Passo | Configuration | Durabilidade (mating cycles) | Material | Cor | Packing |
|---|---|---|---|---|---|
| 4.2mm | Wire to board; Placa a placa | 30 | Nylon Latão | Preto Branco | PE bag |
1.27mm Micro Match
1.27mm micromatch series wire to board connector, wire to wire connector
| Passo | Cor | Faixa de fios | Corrente (máx.) | Tensão (MAX) | Packing |
|---|---|---|---|---|---|
| 1.27mm | Red | 28AWG | 1A | 250V | PE bag Or Reel |
YW200 Series
2.0mm series wire to board connector, wire to wire connector
| Série NO | Cor | Circuitos | Corrente (máx.) | Tensão (MAX) | Packing |
|---|---|---|---|---|---|
| YW200 | black, white, Natural | 2 a 24 | 3A | 250V | PE bag |
YW250 Series
2.50mm series wire to board connector, wire to wire connector
| Série NO | Cor | Circuitos | Corrente (máx.) | Tensão (MAX) | Packing |
|---|---|---|---|---|---|
| YW250 | black, white, Natural | 2 a 24 | 3A | 250V | PE bag |
YW254 Series
2.54mm series wire to board connector, wire to wire connector
| Série NO | Cor | Circuitos | Corrente (máx.) | Tensão (MAX) | Packing |
|---|---|---|---|---|---|
| YW254 | black, white, Natural | 2 a 24 | 3A | 250V | PE bag |
