high current electrical connectors 2 way wire to wire waterproof Chinese manufacturer
Номер детали: YW62-200213-01 Цвет: черный

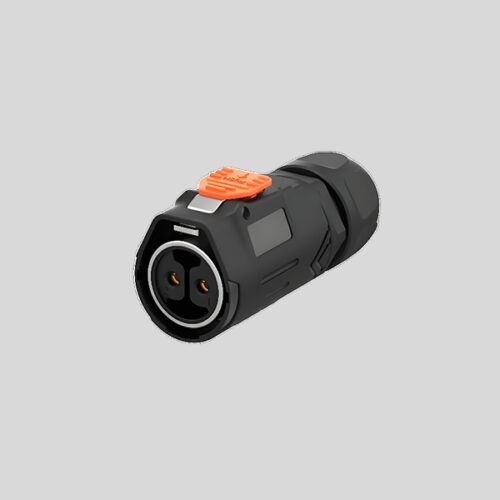

2 way high current electrical connectors, IP67, male, quick lock, made in China
| Часть NO | YW62-200213-01 | Время выполнения | 3-4 недели |
| Номинальный ток | 50A | Номинальное напряжение | 300V |
| Позиция | 2 pin | Заказ Количество | Небольшой заказ доступен |
| Рабочая температура | от -40 до +105℃ | Connecting mode | Quick lock |
high current electrical connectors 2 way wire to wire waterproof Chinese manufacturer
YW is a professional circular connector manufacturer in China, your reliable electrical Connector supplier.
There are over 30,000 kinds of electrical connectors in our factory for Industrial automation, marine, boat, Control systems and PLCs, Robotic machinery, medical equipment, data centers, telecommunication, Military and Aerospace, Power and Energy storage application.
Небольшой заказ принимается.
Basic data for MY24 2 wire high current electrical connectors
| MY24 Pole Male connector | ||||
| PART NO | YW62-200213-01 | YW62-200313-01 | YW62-200413-01 | YW62-200513-01 |
| Number of contacts | 2 pin | 3 булавки | 4 булавки | 5 булавок |
| Rated Currant | 50A | 30A | ||
| Номинальное напряжение | 300V | 300V | 300V | 300V |
| Withstand Voltage | 2000V | 1500V | ||
| Cable range | 16-9AWG (1.5mm²-6mm²） | 18-12AWG (1.0mm²-4mm²） | ||
| Contact diameter | Φ3.6 | Φ2.7 | ||
| Diameter range | MAX Φ16.0mm | |||
| Рабочая температура | -40℃ to 105℃ | |||
| Connecting mode | Quick lock | |||
| Insulation Material | High-performance engineering plastics | |||
| Terminal Material | Copper Alloy | |||
| Flame-resistant rating | UL94V-0 | |||
| Waterproof Level | IP67 | |||
Application of MY24 series
Marine Energy system Medical Equipment
Railway Telecommunications Boat Aerospace & Military
Industrial Automation: control systems, robots, sensors and automation devices
Пожалуйста, свяжитесь с нами и заполните таблицу, вы получите наш ответ в течение 30 минут.
| Система разъемов | Провод к проводу |
|---|
