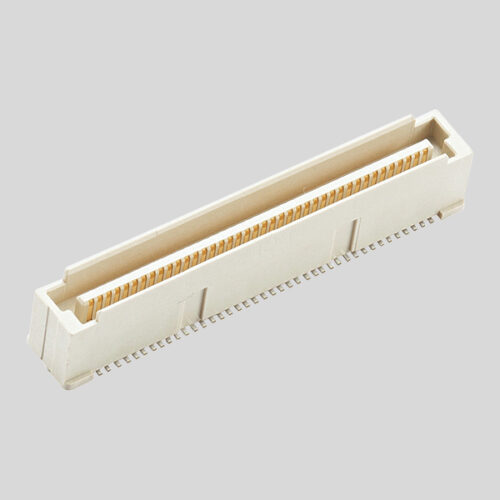

0.8mm mezzanine connector board to board SMT plug
Номер детали: YWH80-BP0406701
0.8mm pitch mezzanine connector SMT plug
Compatible with Amphenol 0.8mm series, ideal for compact electronic devices.
YWF80 0.8mm board to board mezzanine connector various from 20pin to 200pin
FLEXIBLE SOLUTION FOR HIGH DENSITY APPLICATIONS
YW’s YWH80 0.8 mm is a flexible solution designed for high-speed and high-density, parallel board-to-board connector systems
with 16 PCB stack heights in 10 sizes up to 200 positions.
| FEATURES | BENEFITS |
| Housing and terminal profile guarantees support of up to 12 Gb/s | Compatible with PCIe Gen 2/3 and SAS 3.0 high speed performance on selected stack heights |
| Vertical versus vertical mating configuration | Suitable for parallel board stacking applications |
| 20 to 200 position sizes in 20 position increments | Comprehensive range of sizes and stack heights to satisfy all needs |
| 5mm to 20mm stack heights in 1mm increments | High density for all electrical applications needs |
| 0.8mm double-row contact pitch conserves printed circuit board space | Prevents reverse mating |
| Scoop-proof feature housings | Satisfies different application requirement |
| Multiple plating options available | Suitable for varies feeding processing |
| Available in UL94-V0 material | Facilitates ease and accuracy during manual assembly |
| RoHS compliant and lead-free | High flammability rating |
| PCB locator pegs option | Meets environmental, health, and safety requirements |
| Система разъемов | Доска к доске |
|---|---|
| Рабочее напряжение (макс. В пост. тока) | 50V |
| Pitch | 0.4 |
| Ток (MAX) | 0.3A |
| Стиль интерфейса заделки | SMD |
