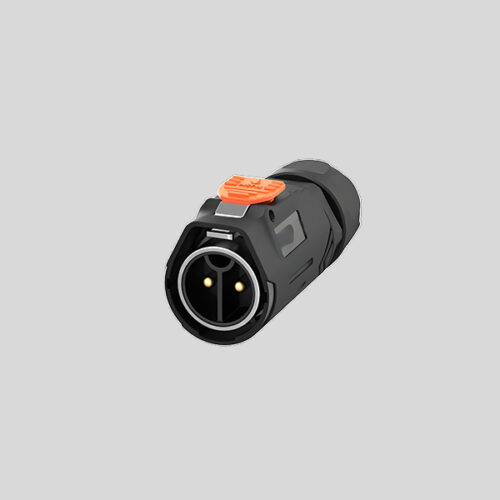

2 pin wire connectors waterproof circular plug and socket best factory for industrial automation
Номер детали: YW62-100213-01 Цвет: черный
2 pin wire connectors waterproof, IP67, male, quick lock, made in China
| Часть NO | YW62-100213-01 | Время выполнения | 3-4 недели |
| Номинальный ток | 50A | Номинальное напряжение | 300V |
| Позиция | 2 pin | Заказ Количество | Небольшой заказ доступен |
| Рабочая температура | от -40 до +105℃ | Connecting mode | Quick lock |
2 pin wire connectors waterproof circular plug and socket best factory for industrial automation
YW is a professional circular connector manufacturer in China, your reliable electrical Connector supplier.
Various waterproof circular connectors for Industrial automation, marine, boat, Control systems and PLCs, Robotic machinery, medical equipment, data centers, telecommunication, Military and Aerospace application, Power and Energy storage.
Небольшой заказ принимается.
Basic data for MY24 2 pin wire connectors waterproof
| MY24 Pin Male connector | ||||
| PART NO | YW62-100213-01 | YW62-100313-01 | YW62-100413-01 | YW62-100513-01 |
| Number of contacts | 2 pin | 3 булавки | 4 булавки | 5 булавок |
| Rated Currant | 50A | 30A | ||
| Номинальное напряжение | 300V | 300V | 300V | 300V |
| Withstand Voltage | 2000V | 1500V | ||
| Cable range | 16-9AWG (1.5mm²-6mm²） | 18-12AWG (1.0mm²-4mm²） | ||
| Contact diameter | Φ3.6 | Φ2.7 | ||
| Diameter range | MAX Φ16.0mm | |||
| Рабочая температура | -40℃ to 105℃ | |||
| Connecting mode | Quick lock | |||
| Insulation Material | High-performance engineering plastics | |||
| Terminal Material | Copper Alloy | |||
| Flame-resistant rating | UL94V-0 | |||
| Waterproof Level | IP67 | |||
Application of MY24 series
Marine Energy system Medical Equipment
Railway Telecommunications Boat Aerospace & Military
Industrial Automation: control systems, robots, sensors and automation devices
Пожалуйста, свяжитесь с нами и заполните таблицу, вы получите наш ответ в течение 30 минут.
| Система разъемов | Провод к проводу |
|---|
