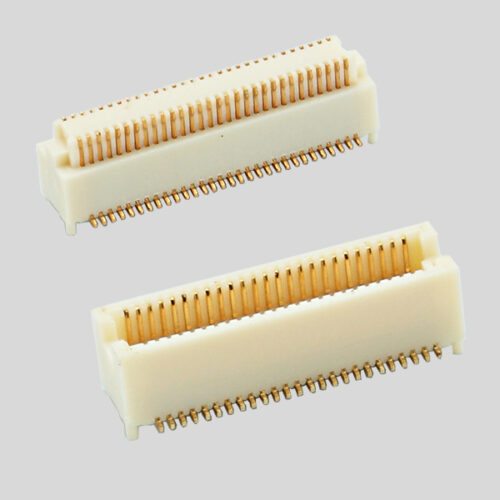

0.5mm high density board to board connectors YWH50 SMT AMP for Telecom and Datacom equipment

0.5mm high density board to board connectors YWH50 SMT AMP for Telecom/Datacom equipment

FLEXIBLE SOLUTION FOR HIGH DENSITY APPLICATIONS

YWH50 0.5 mm is a flexible solution, designed for high-speed board-to-board connectors providing high contact force reliability ensuring strong connectivity,

forced insertions, and removals. A broad range of stacking heights and pin counts are offered to provide maximum design flexibility.

YW Precision Electronics’ 0.50mm pitch connector design is suitable for high-performance applications.

• High Speed performance up to 5Gbps Transmission Speed
• Wide Position: 10 position to 80 position
• High reliability of contact force
• Locating pegs for correct board orientation
• High gold plating for Low-Level Contact Resistance, protects against corrosion
• Polarization key at pin edge to prevent misalignment
• Wide Variety of Stacking Heights:  3.0/3.5/4.0/5.0mm
• Pick & Place Mounting
• Solder Tabs on the Soldering Portion
