Разъемы IDC

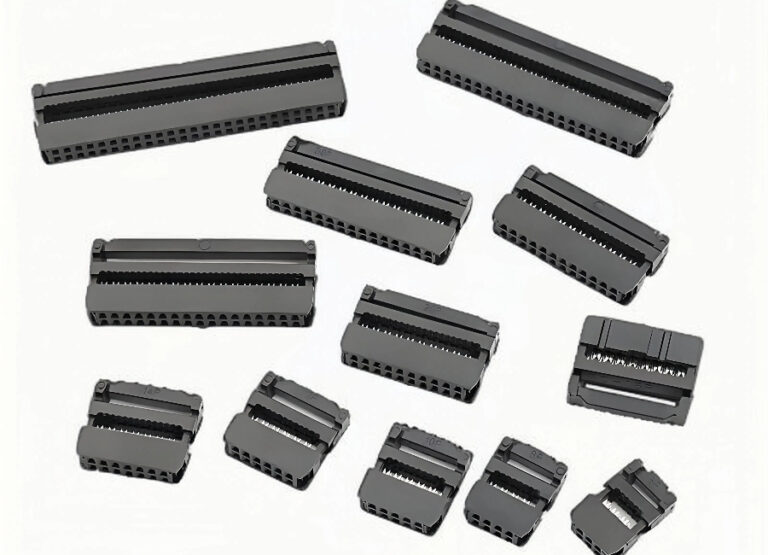

Разъемы IDC - это небольшие электронные компоненты, предназначенные для ленточных кабелей и телекоммуникационных приложений или электронных устройств. Компания YW's является ведущим производителем разъемов IDC и предлагает широкий ассортимент разъемов для различных применений.

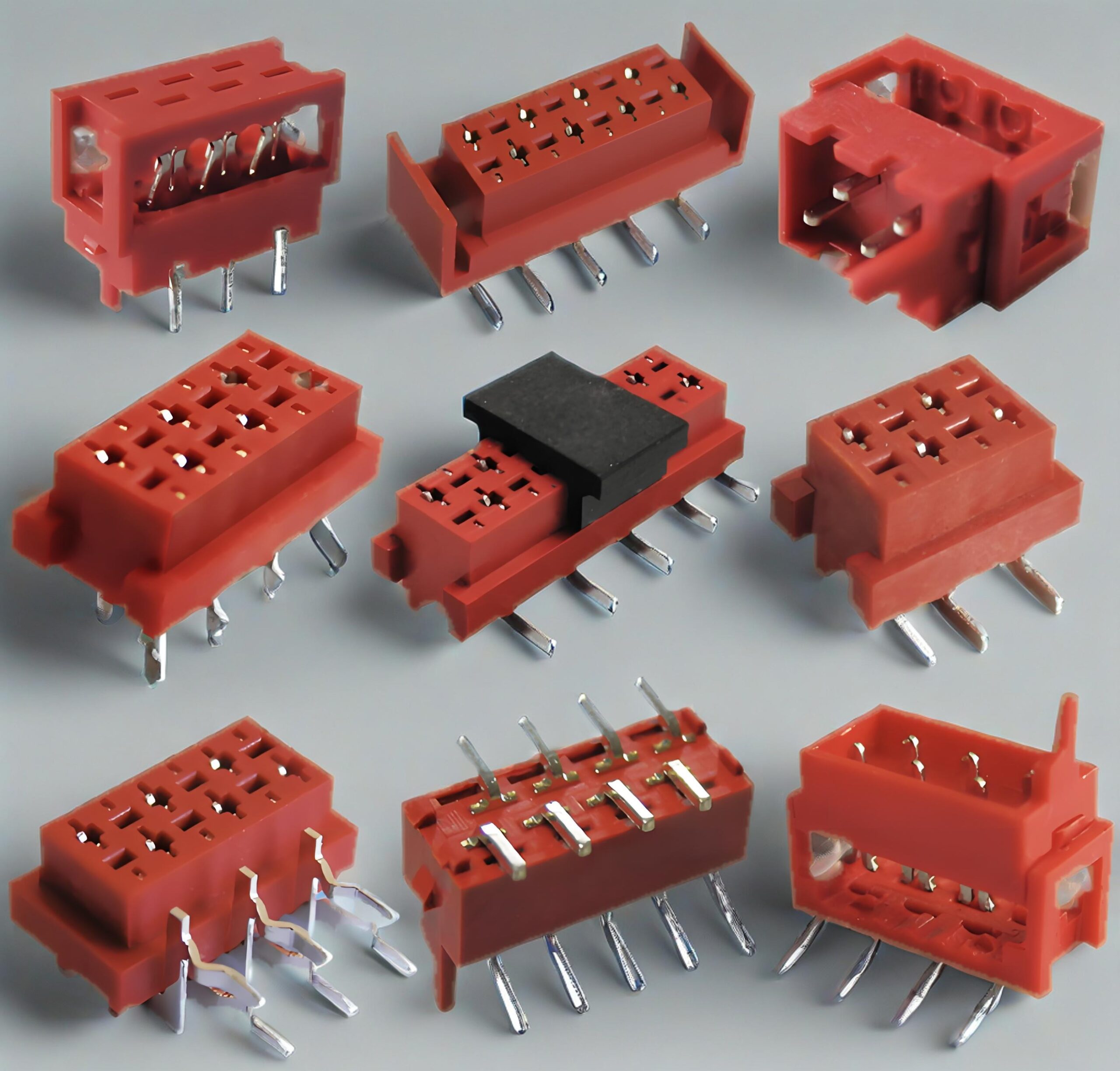

1.27mm micro match Series
1.27 mm micro match IDC connectors are the alternative for T E Micro-MaTch.
| Pitch | Цвет | Схемы | Ток (макс.) | Напряжение (MAX) | Упаковка |
|---|---|---|---|---|---|
| 1.27mm | Red | 4 to 26 | 1A | 500V | PE bag |
1.27mm SMC Series
1.27 mm SMC IDC connectors are the well alternative for E R NI SMC Series
| Pitch | Цвет | Схемы | Ток (макс.) | Напряжение (MAX) | Упаковка |
|---|---|---|---|---|---|
| 1.27mm | Red | 4 to 26 | 1A | 500V | PE bag |
1.27mm IDC Series
1.27 mm IDC connectors are also widely used in many fields, such as outdoor LED lighting system, outdoor LED display screen, industrial automation, etc.
| Pitch | Цвет | Схемы | Ток (макс.) | Напряжение (MAX) | Упаковка |
|---|---|---|---|---|---|
| 1.27mm | Red | 10 to 100 | 1A | 500V | PE bag |
2.0mm IDC Series
2.0mm IDC connectors, IDC cables, Flat ribbon cable IDC connectors with high reliability contacts
| Pitch | Цвет | Схемы | Ток (макс.) | Напряжение (MAX) | Packing |
|---|---|---|---|---|---|
| 2,0 мм | Черный | 6 to 64 | 1A | 500V | PE bag |
2.54mm IDC Series
2.54mm IDC connectors, IDC cables, Flat ribbon cable IDC connectors with high reliability contacts
| Pitch | Цвет | Схемы | Ток (макс.) | Напряжение (MAX) | Packing |
|---|---|---|---|---|---|
| 2.54mm | Черный | 6 to 64 | 1A | 500V | PE bag |
1.27mm IDC Box Header
1.27mm IDC box header connectors, Through hole, right angle, Surface mount, used to mating with IDC female connectors with flat ribbon cable.
| Pitch | Цвет | Схемы | Ток (макс.) | Напряжение (MAX) | Packing |
|---|---|---|---|---|---|
| 1.27mm | Черный | 10 to 100 | 1A | 500V | PE bag |
2.0mm IDC Box Header
2.0mm IDC box header connectors, Through hole, right angle, Surface mount, used to mating with IDC female connectors with flat ribbon cable.
| Pitch | Цвет | Схемы | Ток (макс.) | Напряжение (MAX) | Packing |
|---|---|---|---|---|---|
| 2,0 мм | Черный | 6 to 60 | 1.5A | 500V | PE bag |
2.54mm IDC Box Header
2.54mm IDC box header connectors, Through hole, right angle, Surface mount, used to mating with IDC female connectors with flat ribbon cable.
| Pitch | Цвет | Схемы | Ток (макс.) | Напряжение (MAX) | Packing |
|---|---|---|---|---|---|
| 2.54mm | Черный | 6 to 64 | 1A | 500V | PE bag |
1.27x1.27mm IDC Ejector Header
1.27mm IDC Ejector header connectors, Through hole, right angle, Surface mount, used to mating with 1.27mm IDC female connectors with flat ribbon cable.
| Pitch | Цвет | Схемы | Ток (макс.) | Напряжение (MAX) | Packing |
|---|---|---|---|---|---|
| 1.27mm | Черный | 6 to 64 | 1A | 500V | PE bag |
2.00x2.00mm IDC Ejector Header
2.00mm IDC Ejector header connectors, Through hole, right angle, Surface mount, used to mating with 2.00mm IDC female connectors with flat ribbon cable.
| Pitch | Цвет | Схемы | Ток (макс.) | Напряжение (MAX) | Packing |
|---|---|---|---|---|---|
| 2.00mm | Черный | 6 to 64 | 1.5A | 500V | PE bag |
