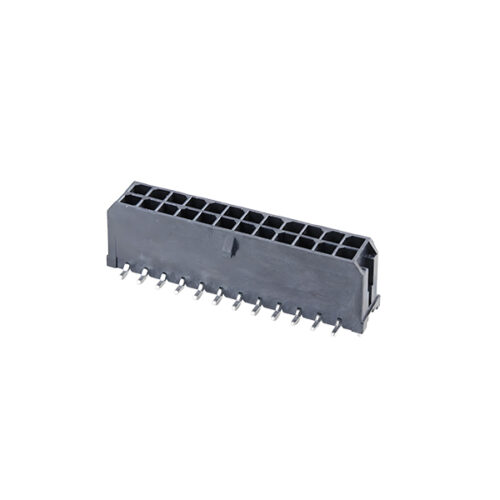

6 pin micro fit 3.0 Vertical Header Dual Row 24 Circuits with PCB Press-fit Metal Retention Clip
electrical connectors 6 pin micro fit 3.0, wire to board, male
6 pin micro fit 3.0 Vertical Header Dual Row 24 Circuits with PCB Press-fit Metal Retention Clip
YW Precision Electronics offers a wide range of popular wire to board and wire to wire connectors, such as 3.0mm micro fit wire to wire crimp connector and wire to board connector.
There are more connectors that are not listed on website or catalogue, if you do not see what you are sourcing, please contact us.
Features
| Breakaway | No | Circuits (Loaded) | 24pin |
| Packaging Type | Bag packing | Color – Resin | Black |
| Durability (mating cycles max) | 30 | First Mate / Last Break | No |
| Flammability | 94V-0 | Glow-Wire Capable | Yes |
| Pitch – Mating Interface | 3.00mm | Material – Metal | Brass |
| Material – Plating Mating | Tin | Material – Plating Termination | Tin |
| Material – Resin | High Temperature Thermoplastic | Shrouded | Fully |
| Number of Rows | double row | Temperature Range – Operating | -40° to +105°C |
Application
Home appliance
Freezers
Printers
Scanners
Security systems
Washing machines
Smart homes
Refrigerators
HVAC systems
Automotive
Harness manufacturers
Interior automotive devices
Non-sealed applications
Power for Data Center
Routers and switches
Servers
Storage systems
Contact us to get the complete catalogue. Email: [email protected]
