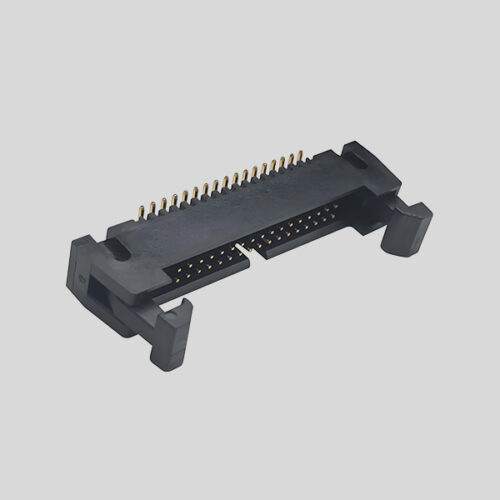

1.27×1.27mm ejector header connectors Surfact mount wire to board connectors
SMT, idc 1.27mm ejector header connectors, mating with 1.27mm IDC female connector cable
1.27×1.27mm ejector header connectors Surfact mount wire to board connectors
YW Precision Electronics offers a wide range of standard 1.27mm, 2.0mm and 2.54mm pitch IDC box header shrouded pin header and enjector header connectors.
There are more connectors that are not listed on website or catalogue, if you do not see what you are sourcing, please contact us.
Features
Flammability Rating: rated UL 94V-0
Contact material: Brass
Housing Color: Black
Contact Pitch: 1.27mm x 1.27mm
Number of Rows: 2
Operating Temperature : -45ºC~+105ºC
Soldering Data: 260°C for 10 seconds (Max)
Mating Suggestion : 1.27mm IDC female connectors
Contact Plating: An or Tin
Compliant: RoHS, REACH
Contact us to get the complete catalogue. Email: [email protected]
