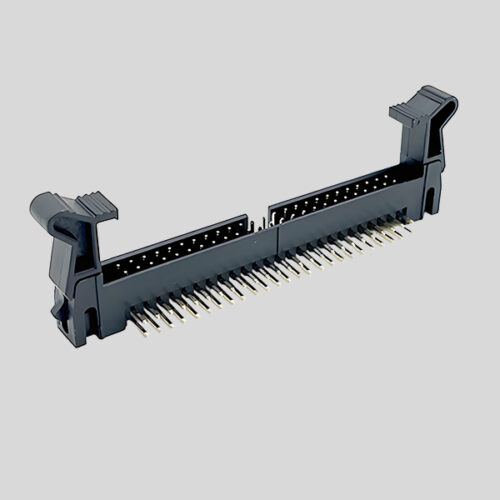

2.0*2.0mm Ejector Header IDC Right Angle DIP with longer latch 6pin to 64pin
SMT, idc 2.0*2.0mm Ejector Header IDC, mating with 2.00mm IDC female connector cable
2.0*2.0mm Ejector Header IDC Right Angle DIP with longer latch 6pin to 64pin
YW Precision Electronics offers a wide range of standard 1.27mm, 2.0mm and 2.54mm pitch IDC box header shrouded pin header and enjector header connectors.
There are more connectors that are not listed on website or catalogue, if you do not see what you are sourcing, please contact us.
Features
Flammability Rating: rated UL 94V-0
Contact material: Brass
Housing Color: Black
Contact Pitch: 2.0*2.0mm
Number of Rows: 2
Operating Temperature : -45ºC~+105ºC
Soldering Data: 260°C for 10 seconds (Max)
Mating Suggestion : 2.00mm IDC female connectors
Contact Plating: An or Tin
Compliant: RoHS, REACH
Contact us to get the complete catalogue. Email: [email protected]
