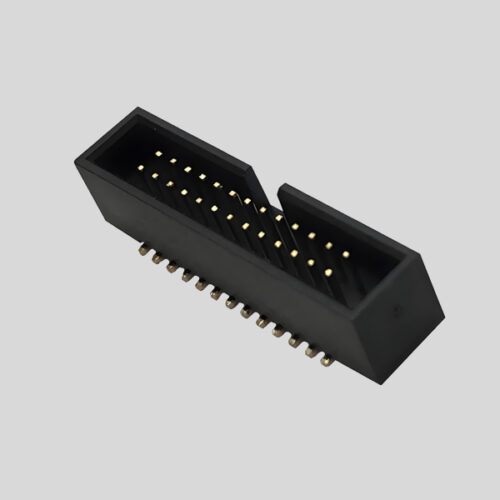

1.27mm idc male connector surfact mount box header 2x13pin
SMT, 2*13Pin idc male connector, mating with 1.27mm IDC female connector
1.27mm idc male connector surfact mount box header 2x13pin
YW Precision Electronics offers a wide range of standard 1.27mm, 2.0mm and 2.54mm pitch IDC box header connectors and enjector header connectors.
There are more connectors that are not listed on website or catalogue, if you do not see what you are sourcing, please contact us.
Features
Insulator: Nylon 6T, glass reinforced, rated UL 94V-0
Contact : Brass
Current Rating : 1 Amp
Dielectric Withstanding Voltage : 250V AC for 1minute
Operating Temperature : -40 to +105
Mating Suggestion : 1.27mm IDC female connectors
Contact Plating: An or Tin
Compliant: RoHS, REACH
Applications
- Electronic voting machines
- Pay terminals
- 5G networking
- Industrial
- Test connectivity
- Medical
- Broadcast video
- Automotive
- AI/machine learning
- Instrumentation
- Home automation and alarm equipment
- Mobile GPS devices
- Lighting system/LED display screen
- Closed-circuit TVs
- Building surface controls
- Set top boxes, audio and video equipment
Contact us to get the complete catalogue. Email: [email protected]
