m12 to m12 connector 6 pin electrical female for PLC and robotics
Part Number: YWM12F-7306AFLLG1

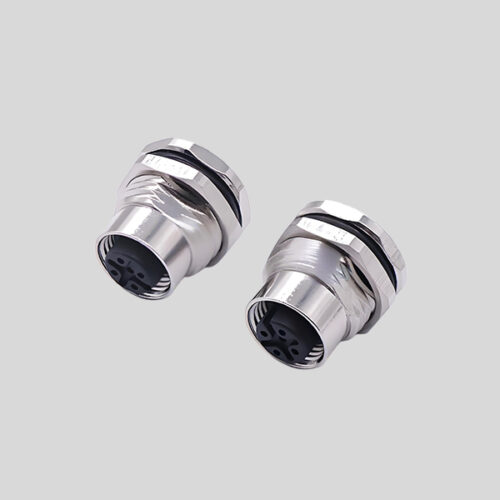

M12 to m12 6 pin connector, gold flash, soldering type, female
m12 to m12 connector 6 pin electrical female for PLC and robotics
Various electrical Circular Connectors are available at YW. There are over 30,000 connector specifications for you to choose. We offers inventory, factory pricing, small qty and fast delivery.
You can find M8, M12, M5, M9, M16, M17, M22, and M23 circular connector and all kinds of d-sub connectors for marine, industrial automation and robotics, Industrial Ethernet, Transportation and Railway Systems, PLC, medical equipment, telecommunication, Renewable Energy Systems and military fields.
Low order is accepted, pls contact us freely.
M12 circular connector Table List
| YW PART NO. | PLATING | NO.of Pos. | Code | Pin Size | Rated Current | Rated voltage | Sold Type (Termination) |
| YWM12F-7303AFLLG1 | Gold Flash | 3.00 | A | 1.0mm | 4A | 250V | L type (soldering) |
| YWM12F-7304AFLLG1 | Gold Flash | 4.00 | A | 1.0mm | 4A | 250V | L type (soldering) |
| YWM12F-7305AFLLG1 | Gold Flash | 5.00 | A | 1.0mm | 4A | 60V | L type (soldering) |
| YWM12F-7306AFLLG1 | Gold Flash | 6.00 | A | 0.8mm | 2A | 30V | L type (soldering) |
| YWM12F-7308AFLLG1 | Gold Flash | 8.00 | A | 0.8mm | 2A | 30V | L type (soldering) |
| YWM12F-7312AFLLG1 | Gold Flash | 12.00 | A | 0.6mm | 1A | 30V | L type (soldering) |
| YWM12F-7317AFLLG1 | Gold Flash | 17.00 | A | 0.6mm | 1A | 30V | L type (soldering) |
| M12 connector Technical Data | ||||||
| NO.of Pos. | Pin Size | Code | Rated Current | Rater voltage | Conduct Size | |
| mm | A/C or D/C | AWG | mm2 | |||
| 3 | 1 | A | 4A | 250 | 22 | 0.34 |
| 4 | 1 | A/B/D | 4A | 250 | 22 | 0.34 |
| 5 | 1 | A/B/D | 4A | 60 | 22 | 0.34 |
| 6 | 0.8 | A | 2A | 30 | 24 | 0.25 |
| 8 | 0.8 | A | 2A | 30 | 24 | 0.25 |
| 12 | 0.6 | A | 1.5A | 30 | 26 | 0.14 |
| 17 | 0.6 | A | 1.5A | 30 | 26 | 0.14 |
Now Take Action to contact for YW circular m12 to m12 connector manufacturer—Your Reliable connector supplier in China.
Pls fill below sheet and you will get our reply within 30 mins.
| Connector system | Board to board |
|---|---|
| Current (MAX) | 4A |
| Pitch | 1.0 |
| Termination Interface Style | DIP |
