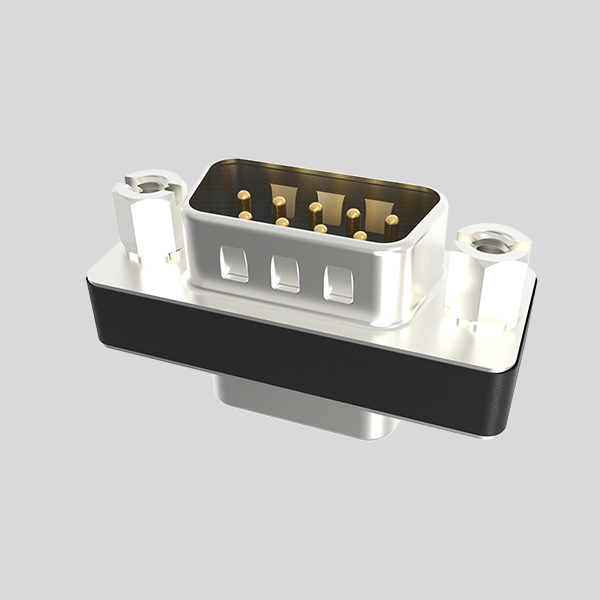

d sub trailer electrical connector adapter 9 pin plug to socket export
Part Number: YWTDB-PS09B01S1 Color: Black
db 9 pin trailer electrical connector adapter, Stamping type, plug to socket, sel. gold flash +tin
| Part NO | YWTDB-PS09B01S1 | Lead Time | 3-4 weeks |
| Rated Current | 5A | Rated Voltage | 250V AC/DC |
| Position | 9 pin | Order Quantity | Small Order Available |
| Operating Temperature | -40 to +105℃ | Mating Durability | 500 cycles for 30u” gold flash |
d sub trailer electrical connector adapter 9 pin plug to socket export
YW is a leading connector factory in China, your reliable and experienced OEM d sub connectors supplier.
Various d sub connectors, circular connector, precision board to board, terminal blocks are used for Industrial automation, Control systems and PLCs, Robotic machinery, medical equipment, data centers, telecommunication, Military and Aerospace application, Power and Energy.
Small order is accepted.
YWTDB Series 9 pin trailer electrical connector adapter list
| PART NO. | Material | Housing Color | Plating | NO.of Pos. | Type |
| YWTDB-PP09B01S1 | PBT+Brass | BLACK | Sel.gold flash/Tin | 9 | plug to plug adapter |
| YWTDB-PP09B01S3 | PBT+Brass | BLACK | Sel.10u”gold flash/Tin | 9 | plug to plug adapter |
| YWTDB-PP09B01S4 | PBT+Brass | BLACK | Sel.15u”gold flash/Tin | 9 | plug to plug adapter |
| YWTDB-PP09B01S5 | PBT+Brass | BLACK | Sel.30u”gold flash/Tin | 9 | plug to plug adapter |
| YWTDB-PS09B01S1 | PBT+Brass | BLACK | Sel.gold flash/Tin | 9 | plug to socket adapter |
| YWTDB-PS09B01S3 | PBT+Brass | BLACK | Sel.10u”gold flash/Tin | 9 | plug to socket adapter |
| YWTDB-PS09B01S4 | PBT+Brass | BLACK | Sel.15u”gold flash/Tin | 9 | plug to socket adapter |
| YWTDB-PS09B01S5 | PBT+Brass | BLACK | Sel.30u”gold flash/Tin | 9 | plug to socket adapter |
Basic data for 9 pin trailer electrical connector adapter
| Catagory | D-Sub, D-Shaped Connectors D Sub Connector Assemblies |
Series | YWTDB-PS |
| Mfg Part No | YWTDB-PS09B01S1 | Operating Temperature | -40°C ~ 105°C |
| Packaging | Tray | Part Status | Active |
| Connector Style | D-Sub | Connector Type | male |
| Number of Positions | 9 circuits | Number of Rows | 2 |
| Mounting Type | Stamping type | Contact Type | Signal |
| Shell Material, Finish | Steel | Finish | Sel. Gold flash + Tin |
| Current Rating (Amps) | 5A | Durability | 500 cycles for 30u” gold flash |
| Contact Material | Brass | Voltage Rating | 250V AC/DC |
| Color | Black | Dielectric Material | Polybutylene Terephthalate (PBT) |
Application of 9 pin trailer electrical connector adapter
Automation Equipment Networking equipment Industrial Control Systems
Data communications Medical equipment Robotics
Control systems and PLCs Military and Aerospace Rail Transit and Metro Systems
Pls feel free to contact us and full fill below table, you will get our reply within 30 mins.
| Connector system | Wire to wire |
|---|---|
| Operating Voltage (VDC max) | 250V |
| Pitch | 2.77 |
| Current (MAX) | 5A |
| Termination Interface Style | Crimp |
