How to find reliable Waterproof M12 Connector Solutions for Industrial Automation
This article explores how circular M12 connectors significantly enhance reliability in industrial automation systems, focusing on their robust technical features, application advantages, and suitability for demanding environments in Europe and the United States.
In today’s rapidly evolving industrial automation landscape, reliable connectivity is essential to ensure consistent operation, safety, and data integrity across machinery and control systems. As automation systems become more interconnected, the demand for connectors capable of handling harsh environments, high data transfer, and mechanical stress has significantly increased. The M12 circular connector has become one of the most widely adopted interface solutions in industrial automation due to its durability, strong environmental protection (IP67/IP68), and compatibility with modern sensor and communication requirements.
Industry Background and Market Demand
Industrial automation requires connectors that ensure stable electrical and data transmission under challenging conditions. Equipment such as robots, PLCs, sensors, and control modules operate in environments with high vibration, humidity, electromagnetic interference, and temperature variation. Key challenges include:
- Exposure to dust, moisture, oil, and chemicals
- Continuous operation and frequent connection/disconnection
- Electromagnetic interference in control and communication networks
- Long-term mechanical stress caused by vibration or movement
With Industry 4.0 accelerating adoption of Ethernet-based industrial networks, the need for compact yet high-performance connectors such as M12 D-code and X-code solutions has increased, supporting Profinet, EtherCAT, and Industrial Ethernet applications.
Technical Features of M12 Circular Connectors
- High IP Protection: M12 connectors are available with IP67 or IP68 protection levels, ensuring resistance to dust and water ingress.
- Vibration Resistance: Secure M12 locking mechanism prevents loosening under mechanical shock or vibration.
- Wide Operating Temperature: Typically -40°C to +85°C (extended versions up to +105°C).
- Electrical Specifications: Rated current up to 4–6A (depending on pin count), rated voltage up to 250V.
- Contact Materials: Copper alloy with gold or nickel plating ensures long-term conductivity and corrosion protection.
- Shielding Options: Available in unshielded or fully shielded versions for EMC protection.
- Termination Types: Field assembly, solder, crimp, and screw terminal, enabling flexible integration.

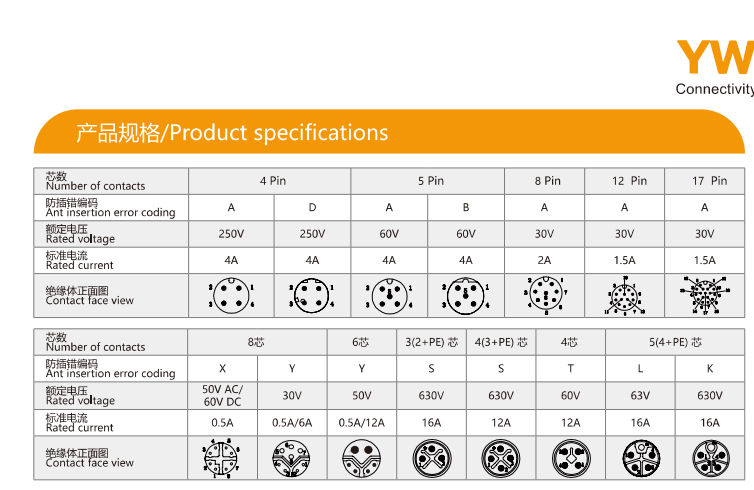

M12 Connector Coding Types (4–17 Pin Options)
YW Precision Electronics supplies a full range of coding types:
- A-code – General signal and DC power
- B-code – Profibus
- D-code – 100 Mbps Ethernet
- X-code – Cat6A, up to 10 Gbps Ethernet
- Y-code – Hybrid power and signal
- S-code / T-code – AC and DC power supply
- L-code – High-current DC power
- K-code – AC power applications
This wide compatibility makes M12 connectors suitable for automation, motor control, power systems, robotics, and smart communication modules.
How to Select the Right M12 Connector
When selecting M12 connectors, consider the following aspects:
- Application type – Signal, data, or power transmission
- Coding compatibility – Ensure matching coding type with device
- Pin configuration – 4 to 17 pins based on system design
- Environmental conditions – IP67/IP68, operating temperature
- Installation preference – Pre-molded cable vs field assembly
- Cable requirements – Length, material, shielding, bending radius
- Compliance standards – CE, ISO, RoHS
YW Precision’s engineering team provides technical support (FAE services), helping customers with connector selection, pinout configuration, wiring solutions, and custom design.
YW Precision Electronics – Custom Industrial Connector Solutions
YW Precision Electronics is a professional manufacturer of M12 connectors, offering:
- Full coding compatibility: A, B, D, X, Y, S, T, L, K (4–17 pin options)
- OEM & ODM customization
- Small quantity orders accepted
- Fast lead time and stable supply chain
- ISO9001 certified
- On-site technical support and rapid prototyping
Industry Experience
YW Precision Electronics provides reliable connectivity solutions for:
- Industrial automation and sensors
- Robotics and motion control systems
- PLC and industrial control panels
- LED lighting and outdoor displays
- Railway communication and safety systems
Frequently Asked Questions (FAQ)
Q1: Can M12 connectors be used for Ethernet applications? Yes. M12 connectors can be used for ethernet industry, as well as many other industrial fields.
Q2: How to ensure waterproof performance? Choose IP67/IP68 rated connectors with proper sealing (O-ring, overmolded cable) and ensure correct installation torque.
Q3: Do you support customized cables and pin configurations? Yes. We provide custom-designed M12 cable assemblies with optional cable lengths, pin mapping, and material selection.
Q4: What is the standard operating temperature range? Typically -40°C to +85°C; extended versions available upon request.
Q5: Can small orders be accepted? Yes, YW Precision supports small quantity orders to assist prototyping and project testing.
Conclusion and Call to Action
M12 circular connectors are essential for ensuring reliability in industrial automation systems. With superior resistance to harsh conditions and wide compatibility with modern communication and power systems, they are increasingly replacing traditional connectors in industrial environments.
YW Precision Electronics provides complete M12 connector solutions with customization options, fast delivery, and expert technical support. Whether for automation, robotics, LED systems, or railway applications, our connectors ensure stable and long-term operation.
Contact us today for technical consultation or to request a quotation. Email: [email protected]
🌐 Website: www.ywconnectors.com
YW Precision Electronics offers versatile M12 connector configurations supporting multiple termination methods including field assembly, solder, crimp, and screw terminal, providing flexible installation options for different engineering requirements.
…
Product Application Scenarios
Case Study 1: Robotic Arm Signal and Power Transmission
In industrial robotics, M12 connector are commonly used for transmitting both signal and low-voltage power to robotic arms. Due to constant motion and vibration, a reliable connection is required to prevent communication loss. YW Precision’s M12 D-code connectors, featuring secure locking mechanisms and vibration resistance, provide stable Ethernet and control signal transmission for dynamic robotic applications.
Case Study 2: LED Display Waterproof Connection
Outdoor LED display systems require waterproof and UV-resistant connectivity. M12 A-code waterproof circular connectors with IP67/IP68 protection and customized cable molding ensure uninterrupted performance in high humidity, heavy rain, and temperature fluctuations. YW Precision’s LED display clients in Europe deploy these connectors in large-scale public digital signage projects, enhancing system durability.
M12 vs M8 Connector Comparison
| Feature | M12 Connector | M8 Connector |
|---|---|---|
| Typical Pin Count | 4–17 pins | 3–8 pins |
| Rated Current | Up to 4–6A (depending on pin count) | Up to 3A |
| Rated Voltage | Up to 250V | Up to 60V |
| Coding Types | A/B/D/X/Y/S/T/L/K codes | Mainly A & B codes |
| Protection Level | IP67/IP68 | Typically IP65–IP67 |
| Cable Diameter | 4–8mm | 3–6mm |
| Suitable Applications | Industrial automation, robotics, sensors, LED systems, railway | Compact sensors, space-constrained devices |
| Mechanical Robustness | High | Medium |
| Field Assembly Available | Yes (field, solder, crimp, screw terminal) | Limited |
