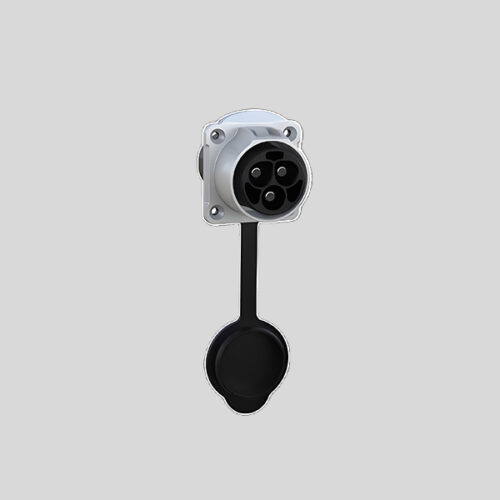

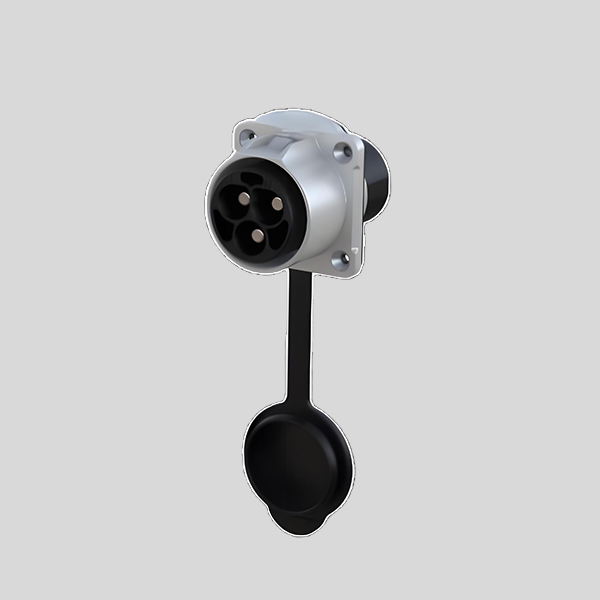

aviation plug socket connector circular MY32 3 pin wire connection for boat truck
Part Number: YW64-100353-01 Color: Black and metal
3 Pin aviation plug socket connector, IP67 waterproof, female, easy and quick connect, made in China
| Part NO | YW64-100353-01 | Lead Time | 3-4 weeks |
| Rated Current | 80A | Rated Voltage | 600V |
| Position3 | 3 pin | Order Quantity | Small Order Available |
| Operating Temperature | -40 to +105℃ | Connecting mode | Quick lock |
aviation plug socket connector circular MY32 3 pin wire connection for boat truck
YW is a professional circular connector manufacturer in China, your reliable Aviation electrical Connector supplier.
Various circular connectors for Industrial automation, marine, boat, Control systems and PLCs, Robotic machinery, medical equipment, data centers, telecommunication, Military and Aerospace application, Power and Energy.
Small order is accepted.
Basic data for MY32 2 Pin Connector Waterproof
| MY32 Pin socket connector | ||||
| PART NO. | YW64-100253-01 | YW64-100353-01 | YW64-100453-01 | YW64-100553-01 |
| Number of contacts | 2 pin | 3 pin | 4 pin | 5 pin |
| Rated Currant | 120A | 80A | 80A | 50A |
| Rated Voltage | 600V | 600V | 600V | 300V |
| Waterproof Level | IP67 | |||
| Cable range | 10-3AWG (4mm²-25mm²） | 10-5AWG (4mm²-16mm²） | 18-9AWG (1.0mm²-6mm²） | |
| Contact diameter | Φ6.0 | Φ4.0 | Φ3.6 | |
| Diameter range | MAX Φ25.0mm | |||
| Operating Temperature | -40℃ to 105℃ | |||
| Connecting mode | Quick lock | |||
| Insulation Material | High-performance engineering plastics | |||
| Terminal Material | Copper Alloy | |||
| Flame-resistant rating | UL94V-0 | |||
| Withstand Voltage | 3000V | 2000V | ||
Application of MY32 series
Marine Aerospace Military Medical Equipment
Energy system Railway Telecommunications Boat
Industrial Automation: control systems, robots, sensors and automation devices
