circular connector m12 5 pin D code waterproof for Industrial Ethernet
Part Number: YWM12H-4305AFVBG1(S)

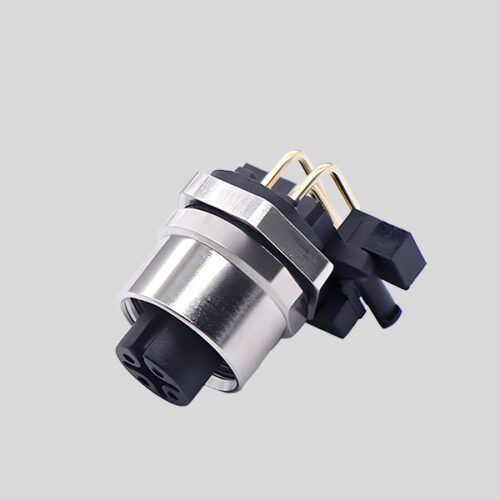

M12, 5 pin, circular connector m12, gold flash, Right Angle, female
circular connector m12 5 pin D code waterproof for Industrial Ethernet
Various Circular Connector plug and socket are available at YW. There are over 30,000 connector specifications for you to choose. We offers inventory, factory pricing, small qty and fast delivery.
You can find M8, M12, M5, M9, M16, M17, M22, and M23 circular connectors and all kinds of d-sub connectors for marine, industrial automation and robotics, Industrial Ethernet, PLC, medical equipment, telecommunication, Renewable Energy Systems and military fields.
Low order is accepted, pls contact us freely.
Circular connector M12 Table List
| YW PART NO. | PLATING | NO.of Pos. | Code | Pin Size | Rated Current | Rated voltage | Sold Type (Termination) |
| YWM12H-4304AFVBG1(S) | Gold Flash | 4.00 | A | 1.0mm | 4A | 250V | Right Angle |
| YWM12H-4305AFVBG1(S) | Gold Flash | 5.00 | A | 1.0mm | 4A | 60V | Right Angle |
| YWM12H-4304DFVBG1(S) | Gold Flash | 4.00 | D | 1.0mm | 4A | 250V | Right Angle |
| YWM12H-4305DFVBG1(S) | Gold Flash | 5.00 | D | 1.0mm | 4A | 60V | Right Angle |
Now Take Action to contact for YW circular connector m12 manufacturer—Your Reliable connector supplier in China.
Pls fill below sheet and you will get our reply within 30 mins.
| Connector system | Board to board |
|---|---|
| Current (MAX) | 4A |
| Pitch | 1.0 |
| Termination Interface Style | DIP |
