15 pin d sub male connector for Automotive and Transportation
Part Number: YWSDC-P15U0000 Color: Blue
15 pin d sub male connector, Crimping type, gold flash +tin
| Part NO | YWSDC-P15U0000 | Lead Time | 3-4 weeks |
| Rated Current | 5A | Rated Voltage | 250V AC/DC |
| Position | 15 pin | Order Quantity | Small Order Available |
| Operating Temperature | -40 to +105℃ | Mating Durability | 500 cycles for 30u” gold flash |
15 pin d sub male connector for Automotive and Transportation
YW is a leading connector manufacturer in China, your reliable and experienced OEM d sub connectors supplier.
Various d sub connectors, circular connector, precision board to board, terminal blocks are used for Industrial automation, Control systems and PLCs, Robotic machinery, medical equipment, data centers, telecommunication, Military and Aerospace application.
Small order is accepted.

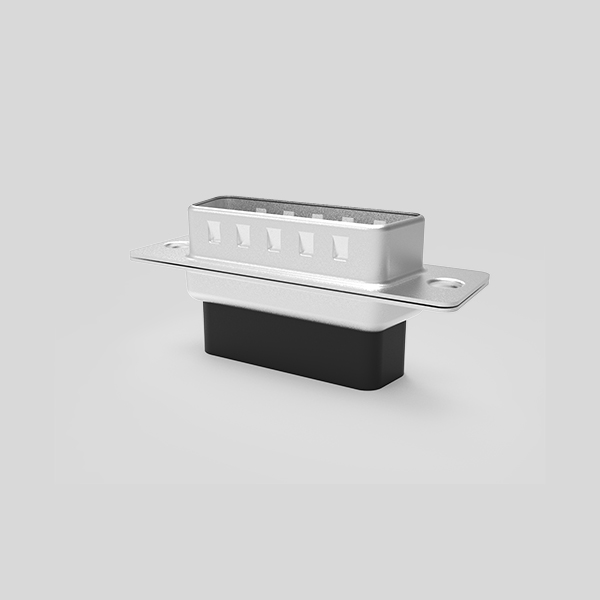

YWSDB Series 15 pin d sub male connector list
| PART NO. | Material | Housing Color | Mating Terminal | NO.of Pos. |
| YWSDC-P15B0000 | PBT+Steel | BLACK | YWSDC-TP** | 15 |
| YWSDC-P15U0000 | PBT+Steel | BLUE | YWSDC-TP** | 15 |
| YWSDC-P15W0000 | PBT+Steel | WHITE | YWSDC-TP** | 15 |
Basic data for 15 pin d sub male connector
| Catagory | D-Sub, D-Shaped Connectors D Sub Connector Assemblies | Series | YWSDC-P15 |
| Mfg Part No | YWSDC-P15U0000 | Operating Temperature | -40°C ~ 105°C |
| Packaging | Tray | Part Status | Active |
| Connector Style | D-Sub | Connector Type | male |
| Number of Positions | 15 circuits | Number of Rows | 2 |
| Mounting Type | Crimping type | Contact Type | Signal |
| Shell Material, Finish | Steel | Finish | Gold flash + Tin |
| Current Rating (Amps) | 5A | Durability | 500 cycles for 30u” gold flash |
| Contact Material | Brass | Voltage Rating | 250V AC/DC |
| Color | Blue | Dielectric Material | Polybutylene Terephthalate (PBT) |
connector 15 pin d sub male crimping cable factory for monitoring systems
Application of 15 pin d sub male connector
Business equipment Networking equipment Industrial Automation and control
Data communications Medical equipment Robotic machinery
Control systems and PLCs Military and Aerospace Signal and power transmission
Pls feel free to contact us and full fill below table, you will get our reply within 30 mins.
| Connector system | Wire to wire |
|---|---|
| Operating Voltage (VDC max) | 250V |
| Pitch | 2.77 |
| Current (MAX) | 5A |
| Termination Interface Style | Crimp |
